Data Sets

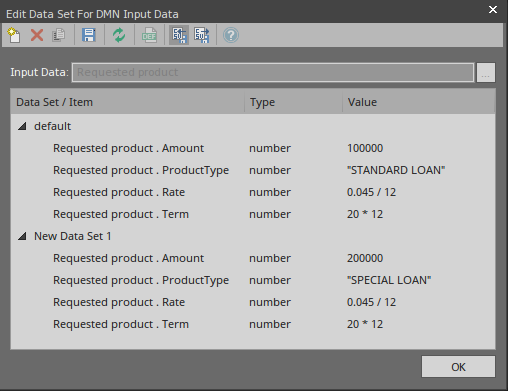

Each InputData can define multiple data sets. With this feature, the DMN Simulation can quickly test some decision's result by choosing from different data sets.

  • The values in the "default" data set will show in the DMN Expression window when the InputData is selected.
  • The user can add/duplicate/delete dataset and set an existing dataset as default.
  • The user can export the datasets to a CSV file and import from a CSV file.

Access

Ribbon

Simulate > DMN > Manage > DMN Expression > InputData, Edit Data Set button on the toolbar

Other

Double-click on an DMN InputData, Edit Data Set button on the toolbar

Toolbar Options

Option

Description

See also

Click on this button to create a new dataset.

Click on this button to delete the selected dataset.

Click this button to duplicate the selected dataset.

Click on this button to save the datasets to the InputData.

Click on this button to reload the datasets for the InputData.

Click on this button to set the selected dataset as default.

Click on this button to import datasets from a CSV file.

Click on this button to export the datasets to a CSV file.
