Balanced Scorecard

Traditional performance management tools only focus on financial outcomes and often fail to consider other important factors such as loyal customers or skilled staff. A more balanced approach is to consider non-financial performance measures in relation to Company Strategy. For example, customers might be prepared to pay more for goods and services produced from an environmentally friendly company. A Balanced Scorecard (Kaplan and Norton, 1992) gives equal weight to four different perspectives. In a single diagram you can record key financial and non-financial goals, with links to meaningful benchmarks and performance measures. The Scorecard acts as a communication and measurement tool to address strategic planning.

Balanced scorecard - Four perspectives:

  • Financial
  • Customer
  • Internal Business Process
  • Learning and Growth

Each perspective must consider these items:

  • Strategic Objectives (growth, profitability, customer satisfaction, process excellence)
  • Measures (revenue growth, return on equity, number of complaints, yield)
  • Targets
  • Initiatives

Creating a Balanced Scorecard

  1. Create a new Package called 'Balanced Scorecard'.
  2. Right-click on the 'Balanced Scorecard' Package and select 'Add Diagram'.
  3. Create a new Balanced Scorecard diagram called 'Four Perspectives' (enter the name, then click on the 'Hamburger' icon, select 'Strategy > Strategy > Strategic Modeling > Balanced Scorecard', and click on the OK button).

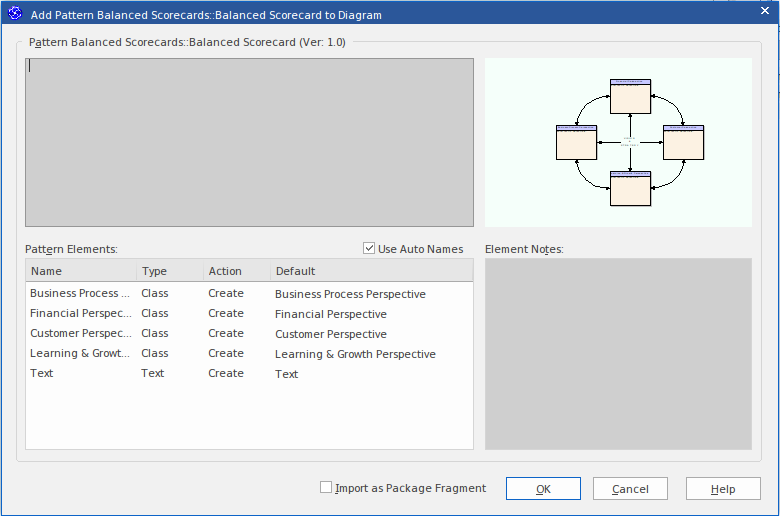

  4. In the Toolbox, open the 'Patterns' section and drag the 'Balanced Scorecard' Pattern onto the Diagram View. The 'Add Pattern Balanced Scorecards :: Balanced Scorecard to Diagram' dialog displays.


  5. Click on the OK button; a confirmatory prompt displays. Click on the Yes button to generate the diagram shown here.

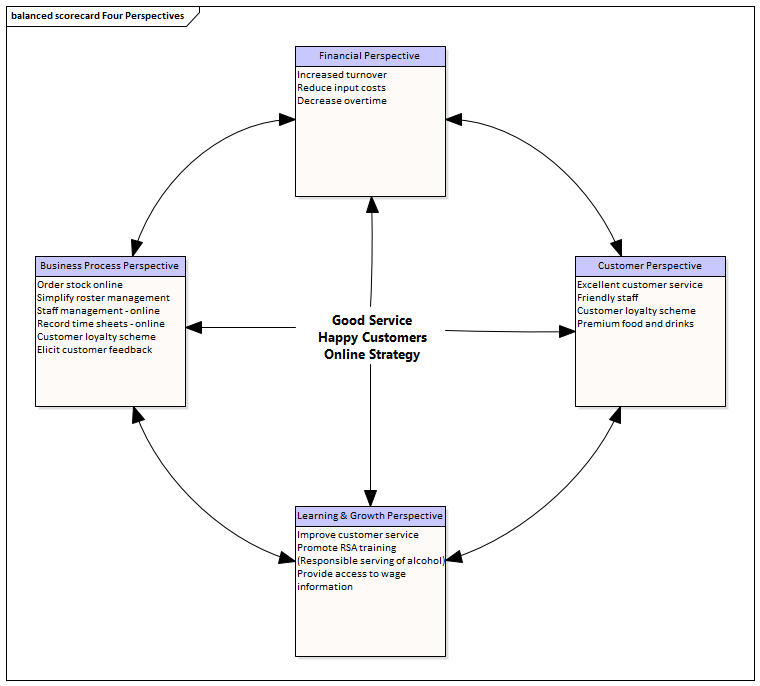

Balanced Scorecard Diagram

This diagram illustrates how the company vision and strategy is directly tied to each of the four perspectives. Resource allocation is based on results and strategy rather than a set of arbitrary financial numbers from the previous financial year. The Balanced Scorecard approach helps to ensure that business activity is engineered to adhere to company values and meet targets. Enterprise Architect allows each perspective to be linked to supporting documentation, model information and rigorous benchmarks that verify whether strategic initiatives have been undertaken and associated targets met.
