BPSim - Execute Page
After the configuration, the user may choose Standard simulation or Customized simulation. The execution will generate result report and a list of records used for replay (step) simulation.
Access
|
Ribbon |
Simulate > BPSIM > Open BPSIM Manager, Execute Page |
Toolbar Options
Option |
Description |
See also |
|---|---|---|
|
Click on this button to execute the BPMN file with BPSim configuration and generate a standard report. |
|
|
Click on this button to execute the BPMN file with BPSim configuration and generate a customized report based on Result Request settings. |
|
|
Click on this button to stop the execution and exit the simulation mode. |
|
|
Click on this button open the generated report in the Review page. |
Execution

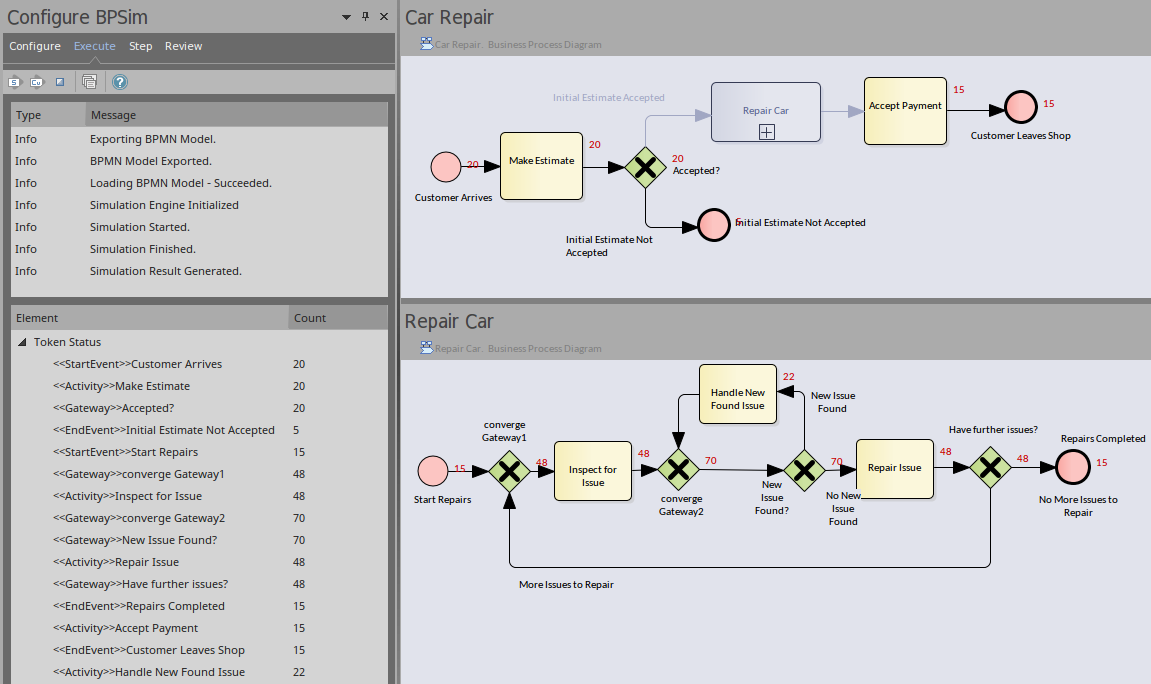

When click on the Standard / Customized , the BPMN model with BPSim Configuration will be exported and loaded into the Execution engine.
- The token status list will flash with runtime values
- The diagram will flash with runtime token counts
In this example, BPMN elements under the Process "Car Repair" and sub process "Repair Car" get triggered as new customer arrived at a regular bases.
