SysML Parametrics Toolbox

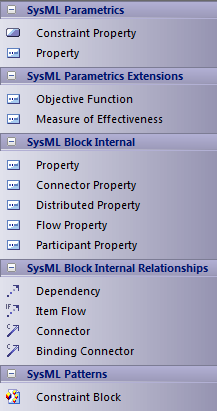

When you are constructing SysML models, you can populate the SysML Parametric diagrams with constraint blocks, using the icons on the 'SysML Parametrics' pages of the Diagram Toolbox.
The Block that owns the Parametric diagram is automatically represented by a diagram frame enclosing the Parametric diagram elements. You can:
- Hide the frame by right-clicking on the diagram and selecting the 'Hide Diagram Frame' option (and show it again by selecting the 'Show Diagram Frame' option)
- Make the frame selectable to move or resize it, by right-clicking on it and selecting the 'Selectable' option
- Create Ports and Parts on the frame and create connectors between them
If set to non-selectable, the frame will auto-resize to fit the bounds of the diagram, expanding from its default size but not shrinking smaller.
Note that diagrams showing Diagram Frames applied under release 14.0 or higher of Enterprise Architect will draw the parent object on the diagram when opened in a release prior to release 14.0.
Access
On the Diagram Toolbox, click on to display the 'Find Toolbox Item' dialog and specify 'SysML n.n Parametrics' (whichever version you are using).
Ribbon |
Design > Diagram > Toolbox |
Keyboard Shortcuts |
|
SysML Parametrics Objects
Item |
Description |
---|---|
Constraint Property |
Instantiates a Constraint Block for use in a Parametric diagram. |
Property |
Defines a SysML property typed by a DataType, ValueType or Block. |
SysML Parametrics Extensions
Item |
Description |
---|---|
Objective Function |
Defines a SysML Constraint Block for use as an objective function to evaluate Measures of Effectiveness (MOEs). |
Measure of Effectiveness |
Defines a SysML property for use as a Measure of Effectiveness (MOE). |
SysML Block Internal
Item |
Description |
---|---|
Property |
Describes the decomposition of a SysML Block in the context of its whole using instances of reusable SysML Blocks. |
Connector Property |
Creates an instance of an Association Block. |
Distributed Property |
Creates a stereotype of Property, to apply a probability distribution to the values of the property. |
Flow Property |
Creates a single kind of Flow element that can flow to or from a block. |
Participant Property |
Creates the end of a connector owned by an Association Block. |
SysML Block Internal Relationships
Relationship |
Description |
See also |
---|---|---|
Dependency |
Establishes a traceable relationship describing how one element is dependant upon another. |
|
Item Flow |
Specifies the items that flow across a connector in an interaction point. Used in the same way as UML Information Flows. |
Using Information Flows |
Connector |
Establishes Communication links between parts. |
Connector |
Binding Connector |
Establishes a connection between two Parts in a system decomposition. |
