Reporting State Transitions
This section describes how you can generate Sequence diagrams that show transitions in state as a program executes.
Use to

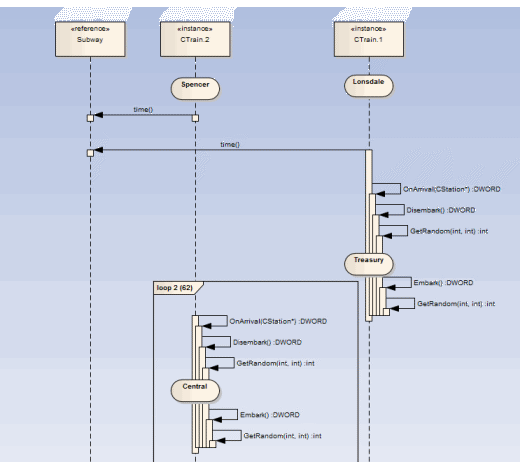

- Generate Sequence diagrams that report user-defined transitions in state as a program executes (as shown in the example generated diagram)
Topic |
See also |
---|---|
Create a StateMachine under the Class to be reported. |
Reporting a State Machine |
Set the constraints against each State to define the change in state to be reported. |
Recording and Mapping State Changes |
