Generate StateMachine Diagram

When you create a scenario on an element and then generate a StateMachine diagram, a StateMachine is created as a child of the selected element to act as a container for the diagram.

• Each value in the 'State' column is modeled as a State
• The scenario steps become the Transition connectors between the States
• The values of the 'Uses' and 'Results' columns are added as Tagged Values of the Transition connectors

Access

On a diagram or in the Project Browser, select an element and use one of these access paths to display the 'Structured Specification' tab, then click on   and select 'State'.

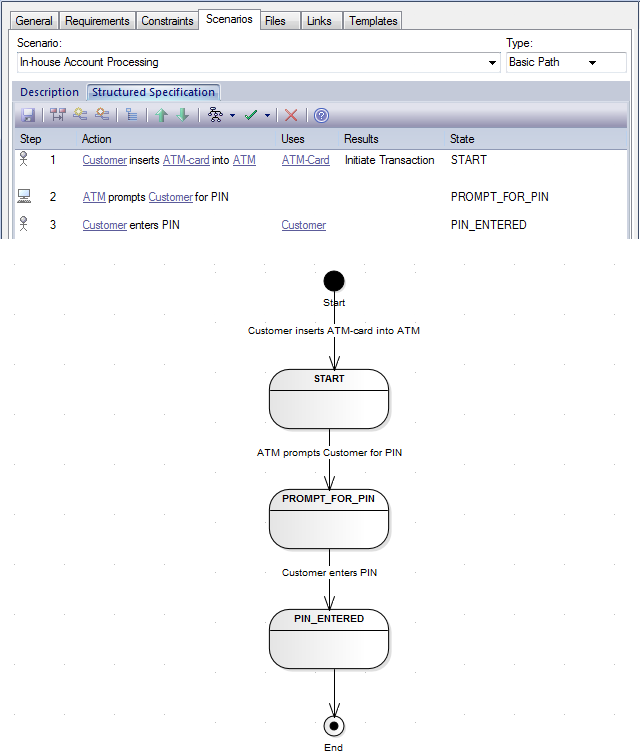

Example
