Re-Signal Triggers

It is possible to re-signal a Trigger as a shortcut of dragging in additional Trigger instances for signalling.

Access

Display the Simulation Events window, then right-click on a Trigger within that window and select the 'Re-Signal Selected' option.

Ribbon

Simulate > Dynamic Simulation > Triggers > right-click on existing trigger > Re-Signal Selected

Untitled

The Simulation Events window contains a list of Triggers that have already fired. By right-clicking on a Trigger that you want to signal again, you can use the context menu to cause the re-signal to happen.

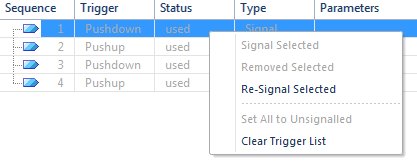

This image demonstrates resignalling in action. When a signal is re-signalled, a new copy is made and placed at the end of the signalled triggers list, where it is automatically fired again.
