Schema Analysis

Analysis on the go

The Schema Composer performs analysis of each type as it is added to the schema, and whenever the Class is selected. The System Output window will show how many, if any, references exist for the type, the number of times it is inherited and other helpful information. This illustration shows a message detailing the elements that are referencing the selected Class.

Validation on the go

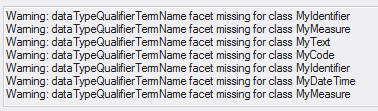

The Schema Composer performs specific validation for a technology should one be assigned. This image shows warnings about missing Tagged Values for Classes in a schema built on the UN/CEFACT Core Components standard.
