Generate Global Element

Enterprise Architect, by default, generates XML Schema in the Garden of Eden style. For every global XSDcomplexType stereotyped Class, the system generates a global element.

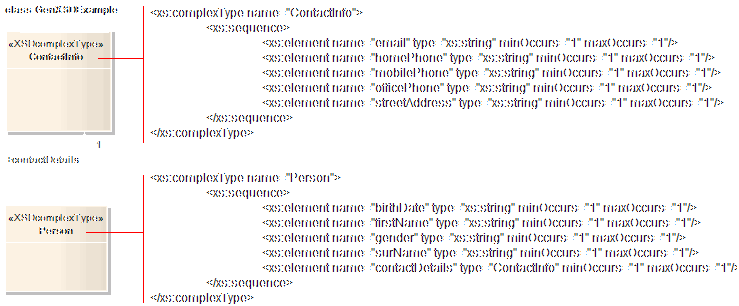

Example

You can change the above specified default behavior by de-selecting the 'Generate global element for all global ComplexTypes' checkbox on the 'Generate XML Schema' dialog. Then, the generated XSD no longer contains the global element; that is, it no longer has the lines:

• <xs:element name="ContactInfo" type="ContactInfo"/> and
• <xs:element name="Person" type="Person"/>

Learn more

• Generate XSD
