Example Use of Collection Classes

Consider this source code:

     class Class1

     {

     public:

          Class1();

          virtual ~Class1();

          CMap<CString,LPCTSTR,Class3*,Class3*> att;

          Vector<Class2> *att1;

          TemplatedClass<class1,class2> *att2;

          CList<Class4>  *att3;

     };

     class Class2

     {

     public:

          Class2();

          virtual ~Class2();

     };

     class Class3

     {

     public:

          Class3();

          virtual ~Class3();

     };

     class Class4

     {

     public:

          Class4();

          virtual ~Class4();

     };

     template<class TParam1, class TParam2>

     class TemplatedClass

     {

     public:

          TemplatedClass() {

          }

          virtual ~TemplatedClass() {

          }

     };

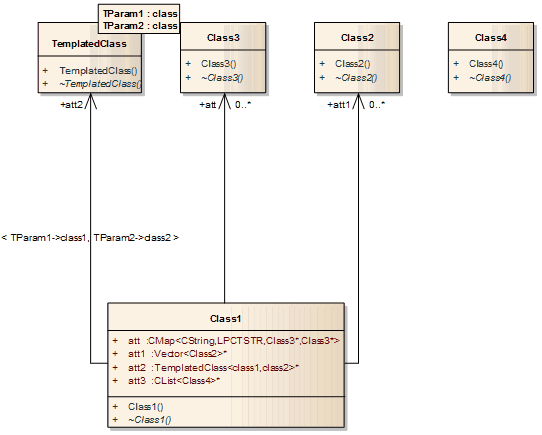

If this code is imported into the system with default import options, this diagram is generated:

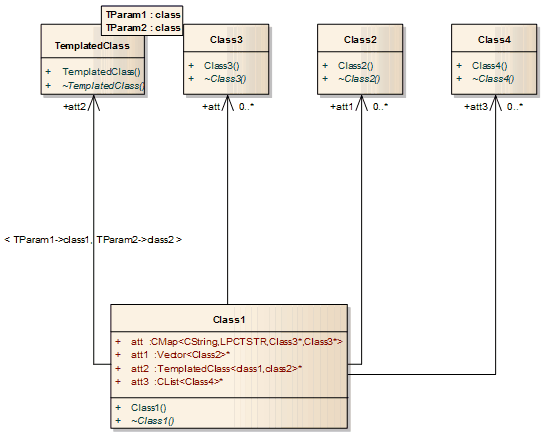

If, however, you enter the value 'CList<#Type#>' in the 'Additional Collection Classes' field in the model-specific language options page (C#, Java, C++), an Association connector is also created to Class 4:
